Arctic Snow

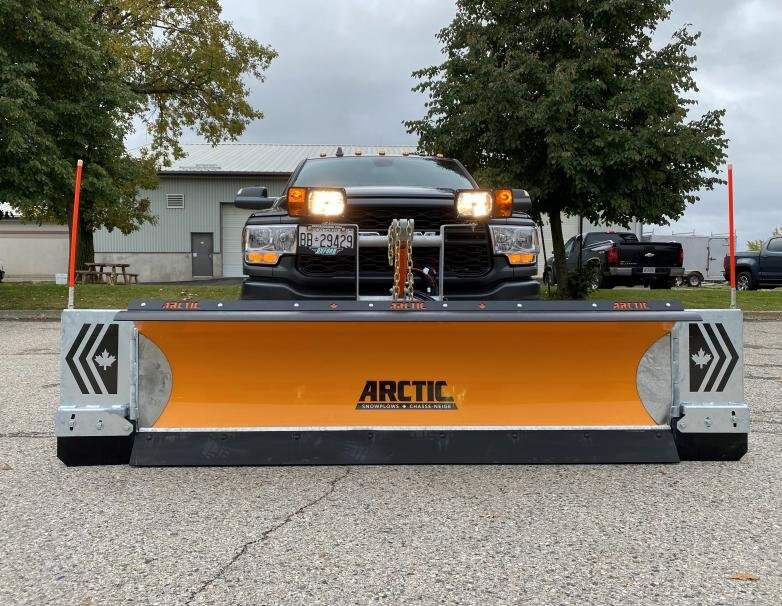

Arctic Heavy Duty Trip Edge Wing Blade VAW Series II W96P
-
ID # 37953007
- Back ID:37953007
- Book a Demo
- Get Directions
Overview
Overview
Specifications
features
literature
Videos
Sales People
Contact Information
Location

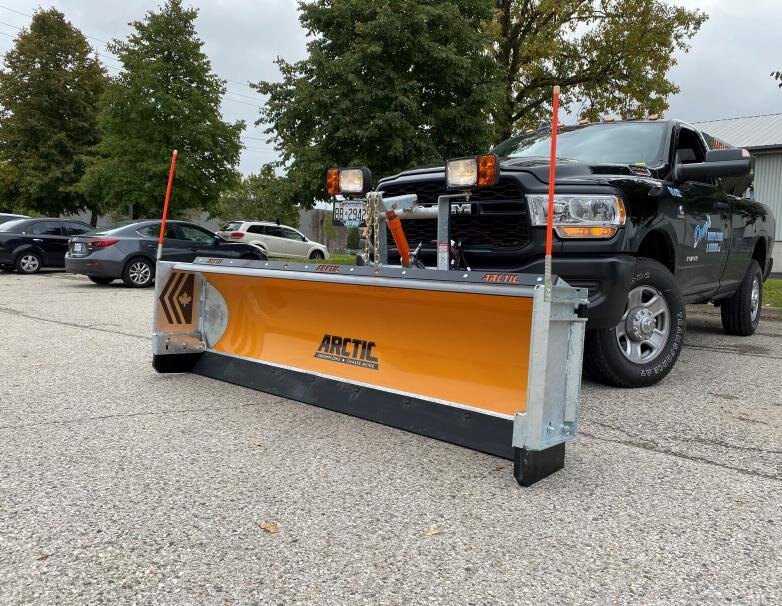

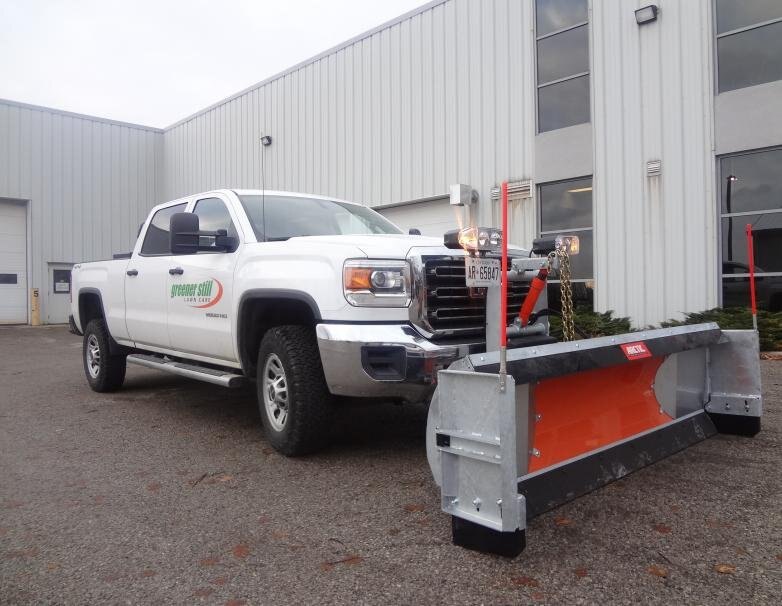

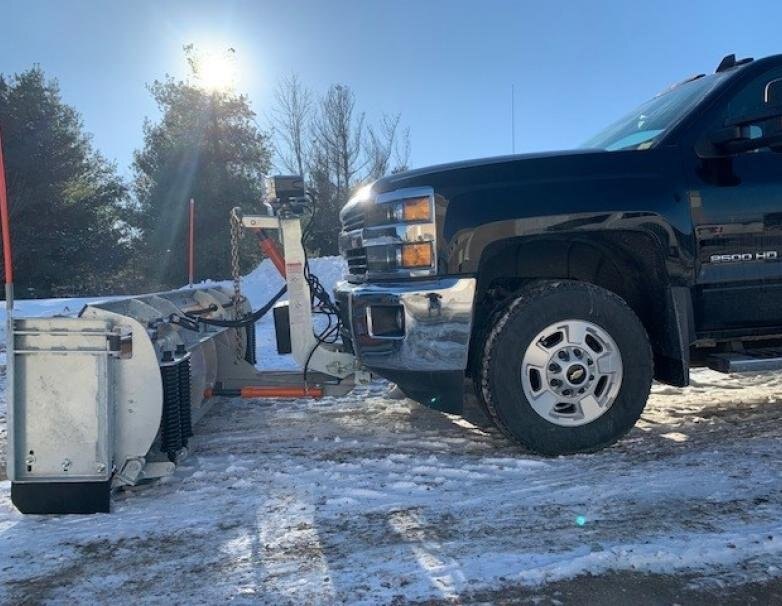

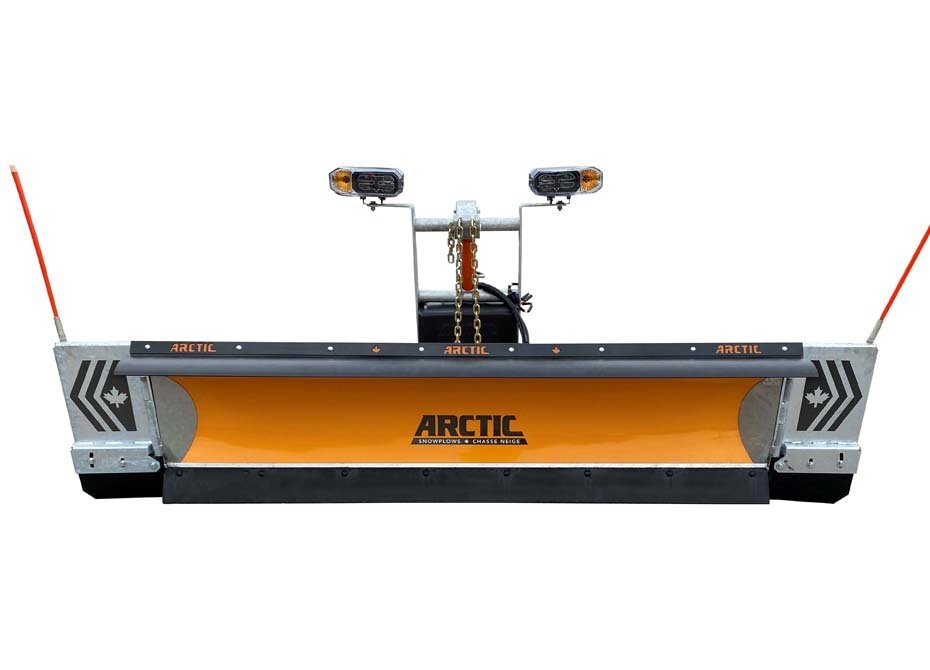

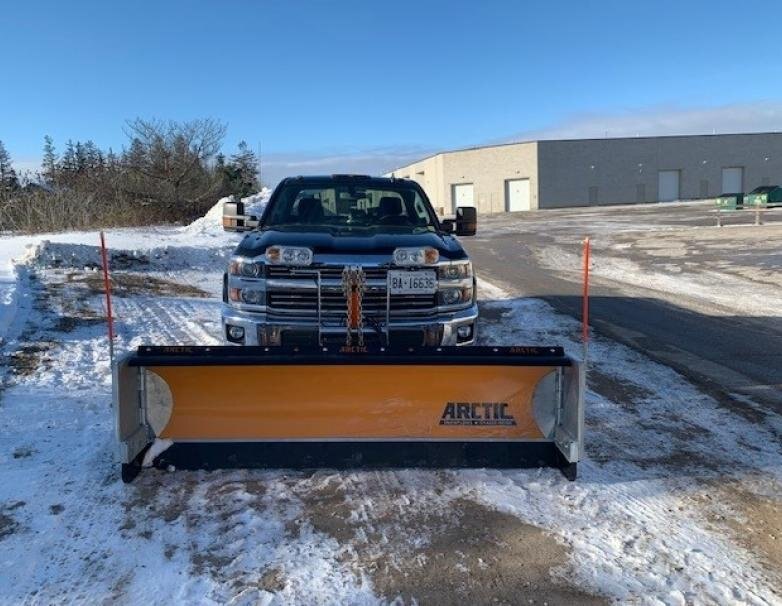

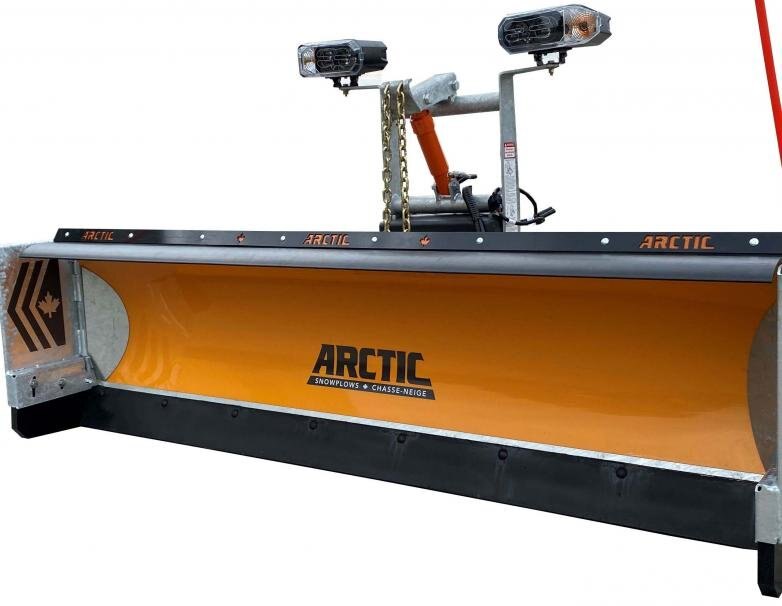

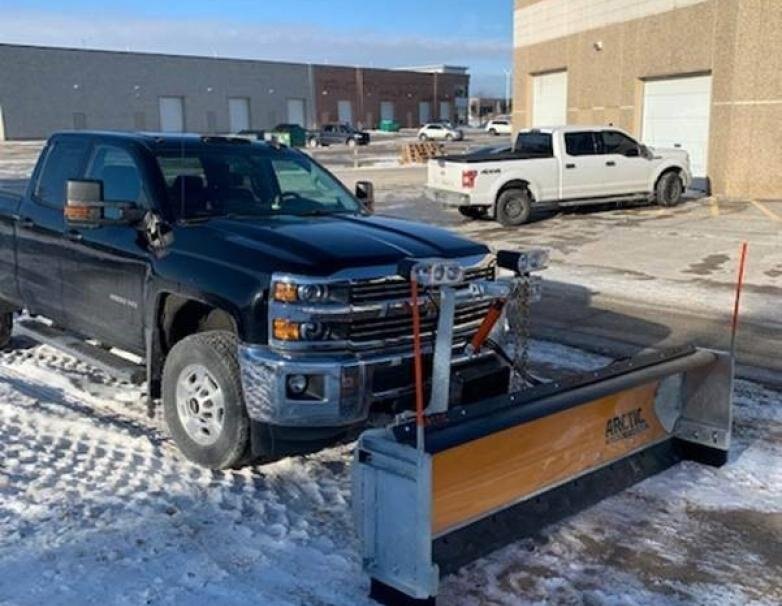

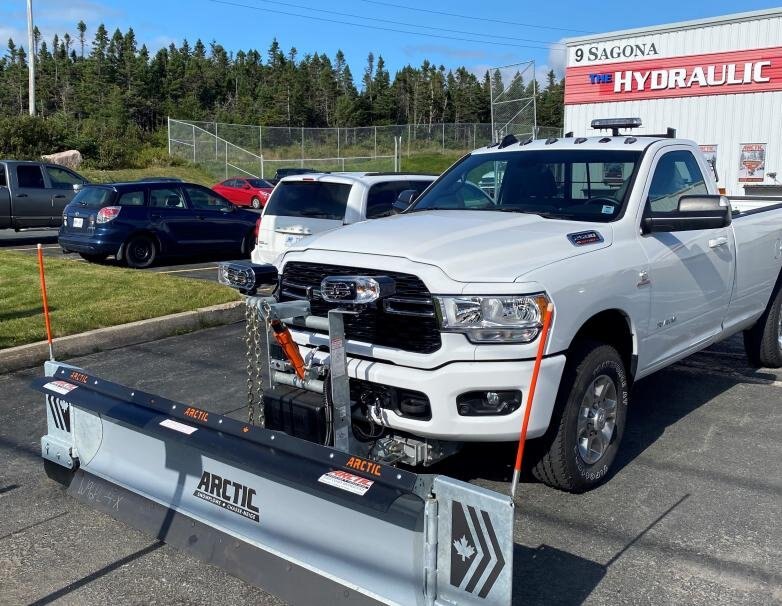

Using Arctic’s hydraulically activated multi-angle wing, we have transformed our heavy duty trip edge plow to become 123” in the open position; or a 98.5” box plow at the push of a button. Built with function in mind, this fully angling blade will give better control in all positions for effective snow management. Floating side wings allow better control and prevents spillage.
Model
Heavy Duty Trip Edge Wing Blade VAW Series II
Category Name
Snow Equipment
Year
2025
Sale Type
New
Manufacturer
Arctic
Quantity
1
Manufacturer Qty
0
Blade Skin
3/8" Poly
Blade Height
29 1/2"
Blade Length
98.5" box position, 123" open position
Cutting Edge
1/2" x 6" Steel
Lift Cylinder
2" x 6"
Mounting Type
Quik*Link™ IV - Detachable
Reinforced Ribs
6
Angling Cylinder
1 1/2" x 10"
Approximate Weight
898 lbs
Compressible Springs
4
Plowing Width At Full Blade Angle
92 1/4" box position, 114" open position
Features
6 Laser-Cut Steel Reinforcing Ribs
|
4 Adjustable Compression Springs
|
6” Curved Deflector
|
Hydraulically Operated Side Wings
|
Unique Greaseable Center Hinge
|
Ultra High Molecular Weight (UHMW) Replaceable Cutting Edge
|
Literature
Name |
Link |
| Brochure | Download |
Videos
Documents
-
VAW_1.pdf
Model
Heavy Duty Trip Edge Wing Blade VAW Series II
Category Name
Snow Equipment
Year
2025
Sale Type
New
Manufacturer
Arctic
Quantity
1
Manufacturer Qty
0
Blade Skin
3/8" Poly
Blade Height
29 1/2"
