ID # 13558416

Muncie SS66 SERIES SPLIT SHAFT POWER TAKE-OFF

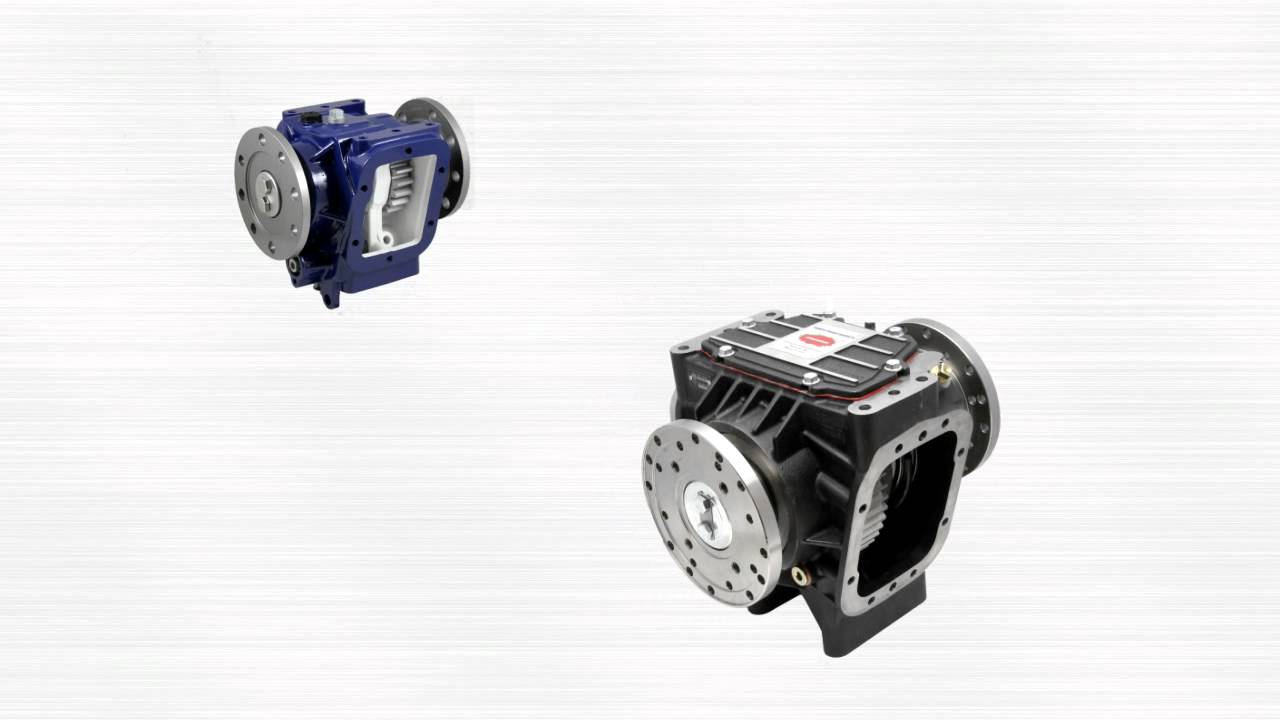

  • Muncie SS66 SERIES SPLIT SHAFT POWER TAKE OFF
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
SS66 Series Split Shaft PTOs are used to provide two 6-bolt PTO apertures where none exist on the main transmission or where space limitations restrict access to the second transmission opening. Split shafts are designed to use the main vehicle driveshaft as their input and provide multiple outputs for auxiliary power equipment. When engaged, the main drive shaft is disconnected from the rear axle. The SS66 is typically used on chassis ranging up to Class 5.
 KEY FEATURES & BENEFITS
  • The SS66 is also used behind a single PTO to offer multiple PTO options
  • (2) 6-bolt PTO openings can accept various common PTO series such as the TG or CS6
  • Engagement can be via air-shift or heavy duty push/pull cable
 SPECIFICATIONS
  • Weight: 20 lbs. (Split shaft unit only, w/o PTOs)
  • Maximum Torque (thru-shaft): 2900 lbs.ft.
  • Maximum PTO Torque: Varies, (see MUNC-01 application page in QR Application Catalog)
  • Output Shaft Options: Varies with PTOs mounted
  • Through Shaft Flanges: Spicer 1410, 1500/1510 Series
Specifications
Model
SS66 SERIES SPLIT SHAFT POWER TAKE-OFF
Category Name
Power Take-Off
Year
2017
Sale Type
New
Manufacturer
Muncie
Videos

Videos

Documents

Documents
